Core module class for two dimensional array designed to be used in array2 class. More...

#include <array_core2.h>

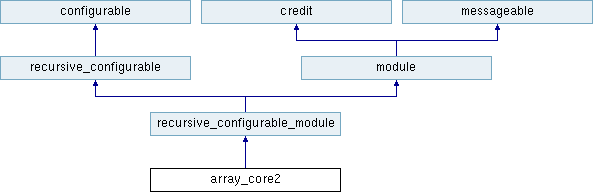

Inheritance diagram for array_core2:

Public Member Functions
virtual void	initialize (unsigned nx, unsigned ny, unsigned element_size)=0
	Allocate grid memory with value. More...

virtual void	get (unsigned &nx, unsigned &ny, unsigned &element_size) const =0
	Get grid information. More...

virtual size_t	count (const parallel_driver &parallel) const =0
	Count the number of active cells. More...

virtual void	copy (const array_core2 &array, std::function< void(void target, const void src)> copy_func, const parallel_driver &parallel)=0
	Copy grid. More...

virtual void	set (int i, int j, std::function< void(void *value_ptr, bool &active)> func)=0
	Set a value of a cell. More...

virtual const void *	operator() (int i, int j, bool &filled) const =0
	Get a value of a cell. More...

virtual void	parallel_actives (std::function< void(int i, int j, void *value_ptr, bool &active, const bool &filled, int thread_index)> func, const parallel_driver &parallel)=0
	Loop over all the active cells in parallel. More...

virtual void	serial_actives (std::function< bool(int i, int j, void *value_ptr, bool &active, const bool &filled)> func)=0
	Loop over all the active cells in serial order. More...

virtual void	const_parallel_actives (std::function< void(int i, int j, const void *value_ptr, const bool &filled, int thread_index)> func, const parallel_driver &parallel) const =0
	Loop over all the active cells in parallel by read-only fashion. More...

virtual void	const_serial_actives (std::function< bool(int i, int j, const void *value_ptr, const bool &filled)> func) const =0
	Loop over all the active cells in serial order by read-only fashion. More...

virtual void	parallel_all (std::function< void(int i, int j, void *value_ptr, bool &active, const bool &filled, int thread_index)> func, const parallel_driver &parallel)=0
	Loop over all the cells in parallel. More...

virtual void	serial_all (std::function< bool(int i, int j, void *value_ptr, bool &active, const bool &filled)> func)=0
	Loop over all the cells in serial order. More...

virtual void	const_parallel_all (std::function< void(int i, int j, const void *value_ptr, const bool &active, const bool &filled, int thread_index)> func, const parallel_driver &parallel) const =0
	Loop over all the cells in parallel by read-only fashion. More...

virtual void	const_serial_all (std::function< bool(int i, int j, const void *value_ptr, const bool &active, const bool &filled)> func) const =0
	Loop over all the cells in serial order by read-only fashion. More...

virtual void	dilate (std::function< void(int i, int j, void *value_ptr, bool &active, const bool &filled, int thread_index)> func, const parallel_driver &parallel)=0
	Dilate cells. More...

virtual void	flood_fill (std::function< bool(void *value_ptr)> inside_func, const parallel_driver &parallel)=0
	Perform flood fill. More...

virtual void	const_parallel_inside (std::function< void(int i, int j, const void *value_ptr, const bool &active, int thread_index)> func, const parallel_driver &parallel) const =0
	Loop over all the filled cells in parallel by read-only fashion. More...

virtual void	const_serial_inside (std::function< bool(int i, int j, const void *value_ptr, const bool &active)> func) const =0
	Loop over all the filled cells in serial order by read-only fashion. More...

Public Member Functions inherited from recursive_configurable_module
virtual void	recursive_load (configuration &config) override
	Start recursively load configurables. More...

virtual void	recursive_configure (configuration &config) override
	Recursively call configure. More...

Public Member Functions inherited from recursive_configurable
	recursive_configurable ()=default
	Default constructor.

virtual void	recursive_initialize (const configurable::environment_map &environment=configurable::environment_map())
	Initialize the program itself and relay the same to its children. Used to get things ready for actual use. More...

virtual bool	is_ready () const
	Get if the instance is initialized. More...

virtual void	add_child (configurable *child)
	Add a child instance. More...

virtual void	add_child (recursive_configurable *child)
	Add a child instance. More...

virtual void	remove_child (configurable *child)
	Remove a child instance. More...

virtual void	remove_child (recursive_configurable *child)
	Remove a child instance. More...

virtual void	setup_now (configuration &config=get_global_configuration()) override
	Run recursive_load - recursive_configure - recursive_initialize processes.

virtual bool	not_recursive () override
	Check if this instance is not derived from recursive_configurable. More...

void	set_environment (std::string name, const void *value)
	Set the pointer to an environmental value associated with an input name. More...

Public Member Functions inherited from configurable
virtual void	load (configuration &config)
	Load the program. Used to load files and libraries into memory. More...

virtual void	configure (configuration &config)
	Configure the program. Used to load and set parameters. More...

Public Member Functions inherited from module
	module ()
	Default constructor for module.

virtual	~module ()
	Default destructor for module.

virtual std::string	get_module_name () const
	Get the module name. More...

Public Member Functions inherited from credit
	credit ()=default
	Default constructor.

	credit (std::string name, std::string argument_name)
	Constructor for credit. More...

virtual void	set_name (std::string name, std::string argument_name="")
	Set name (and perhaps, argument name together) More...

virtual std::string	get_name () const
	Get the name.

virtual void	set_argument_name (std::string argument_name)
	Set an argument name. More...

virtual std::string	get_argument_name () const
	Get an argument name. More...

virtual double	get_version () const
	Get version. More...

virtual std::string	get_author () const
	Get author's name. More...

virtual std::tuple< int, int, int >	get_date () const
	Get currently set date. More...

virtual std::string	get_email_address () const
	Get email address. More...

Public Member Functions inherited from messageable
virtual bool	send_message (std::string message, void *ptr=nullptr)
	Send a message. More...

virtual bool	const_send_message (std::string message, void *ptr=nullptr) const
	Send a message. More...

Protected Member Functions
	array_core2 (const array_core2 &)=delete

void	operator= (const array_core2 &)=delete

Protected Member Functions inherited from configurable
bool	check_set (const environment_map &environment, std::vector< std::string > names)
	Check if the values for a variable keys exist. More...

Additional Inherited Members
Public Types inherited from configurable
using	environment_map = std::map< std::string, const void * >
	Type for environment_map.

Static Public Member Functions inherited from configurable
static configuration &	set_global_configuration (const configuration &config)
	Assign the global settings of the program. More...

static configuration &	get_global_configuration ()
	Get the global settings of the program. More...

template<class T >
static const T &	get_env (const environment_map &environment, std::string key)
	Extract an specified type of pointer from the input environment. More...

Static Public Member Functions inherited from module
static std::string	module_libpath (std::string module_name)
	Get the path to the dynamic library. e.g., "mylib" -> "symlink-public/lib/libshiokaze_mylib.dylib". More...

static module *	alloc_module (configuration &config, std::string arg_name, std::string default_module_name, std::string description)
	Automatically reads the parameter "arg_name" to fetch the name for the library, and allocate the library. More...

static module *	alloc_module (std::string path)
	Reads the dynamic library of a class module, allocate, and return the pointer to it. More...

static unsigned	close_all_handles ()
	Close all the handles that are still unloaded. More...

template<class T >
static std::unique_ptr< T >	unique_alloc_module (configuration &config, std::string arg_name, std::string default_module_name, std::string description)
	Allocate the module and cast to the a specified class T. More...

static unsigned	count_open_modules ()
	Count all the open modules. More...

Protected Attributes inherited from credit
std::string	m_name
	Name of credit.

std::string	m_argument_name
	Argument name.

Detailed Description

Core module class for two dimensional array designed to be used in array2 class.

Member Function Documentation

◆ const_parallel_actives()

virtual void array_core2::const_parallel_actives	(	std::function< void(int i, int j, const void *value_ptr, const bool &filled, int thread_index)>	func,
		const parallel_driver &	parallel
	)		const

pure virtual

Loop over all the active cells in parallel by read-only fashion.

Parameters

[in]	func	Function that processes a cell.
[in]	parallel	Instance to a parallel driver.

◆ const_parallel_all()

virtual void array_core2::const_parallel_all	(	std::function< void(int i, int j, const void *value_ptr, const bool &active, const bool &filled, int thread_index)>	func,
		const parallel_driver &	parallel
	)		const

pure virtual

Loop over all the cells in parallel by read-only fashion.

Parameters

[in]	func	Function that processes a cell.
[in]	parallel	Instance to a parallel driver.

◆ const_parallel_inside()

virtual void array_core2::const_parallel_inside	(	std::function< void(int i, int j, const void *value_ptr, const bool &active, int thread_index)>	func,
		const parallel_driver &	parallel
	)		const

pure virtual

Loop over all the filled cells in parallel by read-only fashion.

Parameters

[in]	func	Function that processes a cell.
[in]	parallel	Instance to a parallel driver.

◆ const_serial_actives()

virtual void array_core2::const_serial_actives ( std::function< bool(int i, int j, const void *value_ptr, const bool &filled)> func ) const

pure virtual

Loop over all the active cells in serial order by read-only fashion.

Parameters

[in] func Function that processes a cell.

◆ const_serial_all()

virtual void array_core2::const_serial_all ( std::function< bool(int i, int j, const void *value_ptr, const bool &active, const bool &filled)> func ) const

pure virtual

Loop over all the cells in serial order by read-only fashion.

Parameters

[in] func Function that processes a cell.

◆ const_serial_inside()

virtual void array_core2::const_serial_inside ( std::function< bool(int i, int j, const void *value_ptr, const bool &active)> func ) const

pure virtual

Loop over all the filled cells in serial order by read-only fashion.

Parameters

[in] func Function that processes a cell.

◆ copy()

virtual void array_core2::copy	(	const array_core2 &	array,
		std::function< void(void target, const void src)>	copy_func,
		const parallel_driver &	parallel
	)

pure virtual

Copy grid.

Parameters

[in]	array	Source grid to copy.
[in]	copy_func	Function that performs copy of an element.
[in]	parallel	Instance to a parallel driver.

◆ count()

virtual size_t array_core2::count ( const parallel_driver & parallel ) const

pure virtual

Count the number of active cells.

Parameters

[in] parallel Instance to a parallel driver.

Returns: Count of active cells.

◆ dilate()

virtual void array_core2::dilate	(	std::function< void(int i, int j, void *value_ptr, bool &active, const bool &filled, int thread_index)>	func,
		const parallel_driver &	parallel
	)

pure virtual

Dilate cells.

Parameters

[in]	func	Function that specifies what value to assign on dilated cells.
[in]	parallel	Instance to a parallel driver.

◆ flood_fill()

virtual void array_core2::flood_fill	(	std::function< bool(void *value_ptr)>	inside_func,
		const parallel_driver &	parallel
	)

pure virtual

Perform flood fill.

Parameters

[in]	inside_func	Function that determines if the cell is inside.
[in]	parallel	Instance to a parallel driver.

◆ get()

virtual void array_core2::get	(	unsigned &	nx,
		unsigned &	ny,
		unsigned &	element_size
	)		const

pure virtual

Get grid information.

Parameters

[out]	nx	Grid width.
[out]	ny	Grid height.
[out]	element_size	bytes per element

◆ initialize()

virtual void array_core2::initialize	(	unsigned	nx,
		unsigned	ny,
		unsigned	element_size
	)

pure virtual

Allocate grid memory with value.

Parameters

[in]	nx	Grid width.
[in]	ny	Grid height.
[in]	element_size	bytes per element

◆ operator()()

virtual const void* array_core2::operator()	(	int	i,
		int	j,
		bool &	filled
	)		const

pure virtual

Get a value of a cell.

Parameters

[in]	i	Position on x coordinate
[in]	j	Position on y coordinate
[out]	filled	Whether the position is filled.

Returns: Pointer to the value of the cell.

◆ parallel_actives()

virtual void array_core2::parallel_actives	(	std::function< void(int i, int j, void *value_ptr, bool &active, const bool &filled, int thread_index)>	func,
		const parallel_driver &	parallel
	)

pure virtual

Loop over all the active cells in parallel.

Parameters

[in]	func	Function that processes a cell.
[in]	parallel	Instance to a parallel driver.

◆ parallel_all()

virtual void array_core2::parallel_all	(	std::function< void(int i, int j, void *value_ptr, bool &active, const bool &filled, int thread_index)>	func,
		const parallel_driver &	parallel
	)

pure virtual

Loop over all the cells in parallel.

Parameters

[in]	func	Function that processes a cell.
[in]	parallel	Instance to a parallel driver.

◆ serial_actives()

virtual void array_core2::serial_actives ( std::function< bool(int i, int j, void *value_ptr, bool &active, const bool &filled)> func )

pure virtual

Loop over all the active cells in serial order.

Parameters

[in] func Function that processes a cell.

◆ serial_all()

virtual void array_core2::serial_all ( std::function< bool(int i, int j, void *value_ptr, bool &active, const bool &filled)> func )

pure virtual

Loop over all the cells in serial order.

Parameters

[in]	func	Function that processes a cell.
[in]	parallel	Instance to a parallel driver.

◆ set()

virtual void array_core2::set	(	int	i,
		int	j,
		std::function< void(void *value_ptr, bool &active)>	func
	)

pure virtual

Set a value of a cell.

Parameters

[in]	i	Position on x coordinate
[in]	j	Position on y coordinate
[in]	func	Function that sets a value.

The documentation for this class was generated from the following file:

include/shiokaze/array/array_core2.h

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ const_parallel_actives()

◆ const_parallel_all()

◆ const_parallel_inside()

◆ const_serial_actives()

◆ const_serial_all()

◆ const_serial_inside()

◆ copy()

◆ count()

◆ dilate()

◆ flood_fill()

◆ get()

◆ initialize()

◆ operator()()

◆ parallel_actives()

◆ parallel_all()

◆ serial_actives()

◆ serial_all()

◆ set()
