Interface for 3D camera manipulations. More...

#include <camera3_interface.h>

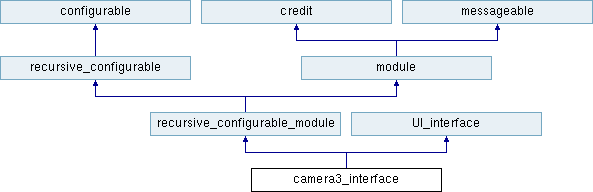

Inheritance diagram for camera3_interface:

Public Member Functions
virtual void	set_bounding_box (const double p0, const double p1)=0
	Set a bounding box. More...

virtual void	look_at (const double target, const double position, const double *up, double fov)=0
	Set up a camera with a target position, origin position, fov and others. More...

virtual void	get (double target, double position, double up, double fov) const =0
	Get camera information about the target position, origin position, fov and others. More...

void	look_at (const double *target)
	Set up a camera with a target position. More...

void	look_from (const double target, const double direction, double distance, const double *up, double fov, double near, double far)
	Set up a camera with a target position, origin position and fov. More...

void	set_distance (double distance)
	Change the distance of camera from the target position. More...

double	get_distance () const
	Get the distance of camera from the target position. More...

void	set_fov (double fov)
	Change the field of view. More...

virtual UI_interface::event_structure	convert (const UI_interface::event_structure &event) const =0
	Convert event. More...

Public Member Functions inherited from recursive_configurable_module
virtual void	recursive_load (configuration &config) override
	Start recursively load configurables. More...

virtual void	recursive_configure (configuration &config) override
	Recursively call configure. More...

Public Member Functions inherited from recursive_configurable
	recursive_configurable ()=default
	Default constructor.

virtual void	recursive_initialize (const configurable::environment_map &environment=configurable::environment_map())
	Initialize the program itself and relay the same to its children. Used to get things ready for actual use. More...

virtual bool	is_ready () const
	Get if the instance is initialized. More...

virtual void	add_child (configurable *child)
	Add a child instance. More...

virtual void	add_child (recursive_configurable *child)
	Add a child instance. More...

virtual void	remove_child (configurable *child)
	Remove a child instance. More...

virtual void	remove_child (recursive_configurable *child)
	Remove a child instance. More...

virtual void	setup_now (configuration &config=get_global_configuration()) override
	Run recursive_load - recursive_configure - recursive_initialize processes.

virtual bool	not_recursive () override
	Check if this instance is not derived from recursive_configurable. More...

void	set_environment (std::string name, const void *value)
	Set the pointer to an environmental value associated with an input name. More...

Public Member Functions inherited from configurable
virtual void	load (configuration &config)
	Load the program. Used to load files and libraries into memory. More...

virtual void	configure (configuration &config)
	Configure the program. Used to load and set parameters. More...

Public Member Functions inherited from module
	module ()
	Default constructor for module.

virtual	~module ()
	Default destructor for module.

virtual std::string	get_module_name () const
	Get the module name. More...

Public Member Functions inherited from credit
	credit ()=default
	Default constructor.

	credit (std::string name, std::string argument_name)
	Constructor for credit. More...

virtual void	set_name (std::string name, std::string argument_name="")
	Set name (and perhaps, argument name together) More...

virtual std::string	get_name () const
	Get the name.

virtual void	set_argument_name (std::string argument_name)
	Set an argument name. More...

virtual std::string	get_argument_name () const
	Get an argument name. More...

virtual double	get_version () const
	Get version. More...

virtual std::string	get_author () const
	Get author's name. More...

virtual std::tuple< int, int, int >	get_date () const
	Get currently set date. More...

virtual std::string	get_email_address () const
	Get email address. More...

Public Member Functions inherited from messageable
virtual bool	send_message (std::string message, void *ptr=nullptr)
	Send a message. More...

virtual bool	const_send_message (std::string message, void *ptr=nullptr) const
	Send a message. More...

Public Member Functions inherited from UI_interface
virtual bool	handle_event (const event_structure &event)

virtual bool	relay_event (const event_structure &event) const
	Get if the event shoule be relayed to other instances after handle_event of this instance is called. More...

virtual CURSOR_TYPE	get_current_cursor () const
	Get current cursor icon. More...

Additional Inherited Members
Public Types inherited from configurable
using	environment_map = std::map< std::string, const void * >
	Type for environment_map.

Public Types inherited from UI_interface
enum	ACTION { RELEASE = 0, PRESS = 1, REPEAT = 2 }
	Key and mose action type. More...

enum	MODIFIER { MOD_SHIFT = 0x0001, MOD_CONTROL = 0x0002, MOD_ALT = 0x0004, MOD_SUPER = 0x0008, MOD_CAPS_LOCK = 0x0010, MOD_NUM_LOCK = 0x0020 }
	Modifier bits. More...

enum	MOUSE_BUTTON { LEFT = 1, RIGHT = 2, MIDDLE = 3 }
	Mouse button type. More...

enum	CURSOR_TYPE { ARROW_CURSOR = 0, HAND_CURSOR = 1, IBEAM_CURSOR = 2, CROSSHAIR_CURSOR = 3, HRESIZE_CURSOR = 4, VRESIZE_CURSOR = 5 }
	Cursor icon type. More...

Static Public Member Functions inherited from configurable
static configuration &	set_global_configuration (const configuration &config)
	Assign the global settings of the program. More...

static configuration &	get_global_configuration ()
	Get the global settings of the program. More...

template<class T >
static const T &	get_env (const environment_map &environment, std::string key)
	Extract an specified type of pointer from the input environment. More...

Static Public Member Functions inherited from module
static std::string	module_libpath (std::string module_name)
	Get the path to the dynamic library. e.g., "mylib" -> "symlink-public/lib/libshiokaze_mylib.dylib". More...

static module *	alloc_module (configuration &config, std::string arg_name, std::string default_module_name, std::string description)
	Automatically reads the parameter "arg_name" to fetch the name for the library, and allocate the library. More...

static module *	alloc_module (std::string path)
	Reads the dynamic library of a class module, allocate, and return the pointer to it. More...

static unsigned	close_all_handles ()
	Close all the handles that are still unloaded. More...

template<class T >
static std::unique_ptr< T >	unique_alloc_module (configuration &config, std::string arg_name, std::string default_module_name, std::string description)
	Allocate the module and cast to the a specified class T. More...

static unsigned	count_open_modules ()
	Count all the open modules. More...

Static Public Member Functions inherited from UI_interface
static bool	has_graphical_interface ()
	Get if a graphical interface is available. More...

Protected Member Functions inherited from configurable
bool	check_set (const environment_map &environment, std::vector< std::string > names)
	Check if the values for a variable keys exist. More...

Protected Member Functions inherited from UI_interface
virtual void	resize (int width, int height)
	Function that catches window resizing events. More...

virtual void	draw (graphics_engine &g) const
	Function that catches draw event. More...

virtual bool	keyboard (int key, int action, int mods)
	Function that catches key down event. More...

virtual void	cursor (double x, double y, double z)
	Function that catches passive cursor event. More...

virtual void	mouse (double x, double y, double z, int button, int action, int mods)
	Function that catches mouse event. More...

virtual void	scroll (double xoffset, double yoffset)
	Function that catches scroll event. More...

virtual void	drag (double x, double y, double z, double u, double v, double w)
	Function that catches drag event. More...

Protected Attributes inherited from credit
std::string	m_name
	Name of credit.

std::string	m_argument_name
	Argument name.

Detailed Description

Interface for 3D camera manipulations.

Member Function Documentation

◆ convert()

virtual UI_interface::event_structure camera3_interface::convert ( const UI_interface::event_structure & event ) const

pure virtual

Convert event.

Parameters

[in] event input raw event information.

Returns: information with physical coordinate position.

◆ get()

virtual void camera3_interface::get	(	double *	target,
		double *	position,
		double *	up,
		double *	fov
	)		const

pure virtual

Get camera information about the target position, origin position, fov and others.

Parameters

[out]	target	Target position.
[out]	position	Camera position.
[out]	up	Top unit vector.
[out]	fov	Field of view.

◆ get_distance()

double camera3_interface::get_distance ( ) const

inline

Get the distance of camera from the target position.

Returns: Distance from the target to the camera.

◆ look_at() [1/2]

void camera3_interface::look_at ( const double * target )

inline

Set up a camera with a target position.

Parameters

[in] target Target position.

◆ look_at() [2/2]

virtual void camera3_interface::look_at	(	const double *	target,
		const double *	position,
		const double *	up,
		double	fov
	)

pure virtual

Set up a camera with a target position, origin position, fov and others.

Parameters

[in]	target	Target position.
[in]	position	Camera position.
[in]	up	Top unit vector.
[in]	fov	Field of view.

◆ look_from()

void camera3_interface::look_from	(	const double *	target,
		const double *	direction,
		double	distance,
		const double *	up,
		double	fov,
		double	near,
		double	far
	)

inline

Set up a camera with a target position, origin position and fov.

Parameters

[in]	target	Target position.
[in]	direction	Direction from the target position. (unit vector)
[in]	distance	Distance from the camera.
[in]	up	Top unit vector.
[in]	fov	Field of view.
[in]	near	Near clip view.
[in]	far	Far clip view.

◆ set_bounding_box()

virtual void camera3_interface::set_bounding_box	(	const double *	p0,
		const double *	p1
	)

pure virtual

Set a bounding box.

Parameters

[in]	p0	Left bottom corner position.
[in]	p1	Right top corner position.

◆ set_distance()

void camera3_interface::set_distance ( double distance )

inline

Change the distance of camera from the target position.

Parameters

[in] distance New distance.

◆ set_fov()

void camera3_interface::set_fov ( double fov )

inline

Change the field of view.

Parameters

[in] fov New field of view.

The documentation for this class was generated from the following file:

include/shiokaze/ui/camera3_interface.h
