Interface for implementing drawable classes. More...

#include <drawable.h>

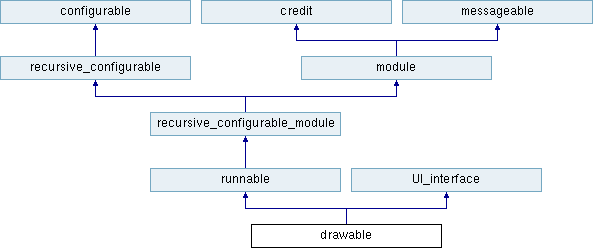

Inheritance diagram for drawable:

Public Member Functions
virtual void	recursive_initialize (const environment_map &environment) override
	Recursively call configure. More...

virtual bool	handle_event (const event_structure &event) override

virtual void	reinitialize ()
	Re-initialize instance.

virtual void	setup_window (std::string &name, int &width, int &height) const
	Set up an initial new window environment. More...

virtual bool	should_quit () const override
	Function to tell the host program that program should quit. More...

virtual bool	should_screenshot () const
	Function to tell the host program that screenshot should be taken. More...

virtual bool	hide_logo () const
	Tell the host program if a SHKZ logo should be hidden. More...

virtual UI_interface::CURSOR_TYPE	get_current_cursor () const override
	Get current cursor icon. More...

Public Member Functions inherited from runnable
	runnable ()
	Constructor for runnable.

virtual	~runnable ()
	Destructor for runnable.

virtual void	run_onetime ()
	Function that is called only one time on start.

virtual void	idle ()
	idling function that is called while is_running() returns true.

virtual bool	is_running () const
	Get if the simulation is running.

virtual void	set_running (bool running)
	Set if the simulation is running.

Public Member Functions inherited from recursive_configurable_module
virtual void	recursive_load (configuration &config) override
	Start recursively load configurables. More...

virtual void	recursive_configure (configuration &config) override
	Recursively call configure. More...

Public Member Functions inherited from recursive_configurable
	recursive_configurable ()=default
	Default constructor.

virtual bool	is_ready () const
	Get if the instance is initialized. More...

virtual void	add_child (configurable *child)
	Add a child instance. More...

virtual void	add_child (recursive_configurable *child)
	Add a child instance. More...

virtual void	remove_child (configurable *child)
	Remove a child instance. More...

virtual void	remove_child (recursive_configurable *child)
	Remove a child instance. More...

virtual void	setup_now (configuration &config=get_global_configuration()) override
	Run recursive_load - recursive_configure - recursive_initialize processes.

virtual bool	not_recursive () override
	Check if this instance is not derived from recursive_configurable. More...

void	set_environment (std::string name, const void *value)
	Set the pointer to an environmental value associated with an input name. More...

Public Member Functions inherited from configurable
virtual void	load (configuration &config)
	Load the program. Used to load files and libraries into memory. More...

virtual void	configure (configuration &config)
	Configure the program. Used to load and set parameters. More...

Public Member Functions inherited from module
	module ()
	Default constructor for module.

virtual	~module ()
	Default destructor for module.

virtual std::string	get_module_name () const
	Get the module name. More...

Public Member Functions inherited from credit
	credit ()=default
	Default constructor.

	credit (std::string name, std::string argument_name)
	Constructor for credit. More...

virtual void	set_name (std::string name, std::string argument_name="")
	Set name (and perhaps, argument name together) More...

virtual std::string	get_name () const
	Get the name.

virtual void	set_argument_name (std::string argument_name)
	Set an argument name. More...

virtual std::string	get_argument_name () const
	Get an argument name. More...

virtual double	get_version () const
	Get version. More...

virtual std::string	get_author () const
	Get author's name. More...

virtual std::tuple< int, int, int >	get_date () const
	Get currently set date. More...

virtual std::string	get_email_address () const
	Get email address. More...

Public Member Functions inherited from messageable
virtual bool	send_message (std::string message, void *ptr=nullptr)
	Send a message. More...

virtual bool	const_send_message (std::string message, void *ptr=nullptr) const
	Send a message. More...

Public Member Functions inherited from UI_interface
virtual bool	relay_event (const event_structure &event) const
	Get if the event shoule be relayed to other instances after handle_event of this instance is called. More...

Protected Attributes
environment_map	m_environment

Protected Attributes inherited from credit
std::string	m_name
	Name of credit.

std::string	m_argument_name
	Argument name.

Additional Inherited Members
Public Types inherited from configurable
using	environment_map = std::map< std::string, const void * >
	Type for environment_map.

Public Types inherited from UI_interface
enum	ACTION { RELEASE = 0, PRESS = 1, REPEAT = 2 }
	Key and mose action type. More...

enum	MODIFIER { MOD_SHIFT = 0x0001, MOD_CONTROL = 0x0002, MOD_ALT = 0x0004, MOD_SUPER = 0x0008, MOD_CAPS_LOCK = 0x0010, MOD_NUM_LOCK = 0x0020 }
	Modifier bits. More...

enum	MOUSE_BUTTON { LEFT = 1, RIGHT = 2, MIDDLE = 3 }
	Mouse button type. More...

enum	CURSOR_TYPE { ARROW_CURSOR = 0, HAND_CURSOR = 1, IBEAM_CURSOR = 2, CROSSHAIR_CURSOR = 3, HRESIZE_CURSOR = 4, VRESIZE_CURSOR = 5 }
	Cursor icon type. More...

Static Public Member Functions inherited from configurable
static configuration &	set_global_configuration (const configuration &config)
	Assign the global settings of the program. More...

static configuration &	get_global_configuration ()
	Get the global settings of the program. More...

template<class T >
static const T &	get_env (const environment_map &environment, std::string key)
	Extract an specified type of pointer from the input environment. More...

Static Public Member Functions inherited from module
static std::string	module_libpath (std::string module_name)
	Get the path to the dynamic library. e.g., "mylib" -> "symlink-public/lib/libshiokaze_mylib.dylib". More...

static module *	alloc_module (configuration &config, std::string arg_name, std::string default_module_name, std::string description)
	Automatically reads the parameter "arg_name" to fetch the name for the library, and allocate the library. More...

static module *	alloc_module (std::string path)
	Reads the dynamic library of a class module, allocate, and return the pointer to it. More...

static unsigned	close_all_handles ()
	Close all the handles that are still unloaded. More...

template<class T >
static std::unique_ptr< T >	unique_alloc_module (configuration &config, std::string arg_name, std::string default_module_name, std::string description)
	Allocate the module and cast to the a specified class T. More...

static unsigned	count_open_modules ()
	Count all the open modules. More...

Static Public Member Functions inherited from UI_interface
static bool	has_graphical_interface ()
	Get if a graphical interface is available. More...

Protected Member Functions inherited from runnable
virtual void	initialize (const environment_map &environment) override
	Initialize the program. Used to get things ready for actual use. More...

Protected Member Functions inherited from configurable
bool	check_set (const environment_map &environment, std::vector< std::string > names)
	Check if the values for a variable keys exist. More...

Protected Member Functions inherited from UI_interface
virtual void	resize (int width, int height)
	Function that catches window resizing events. More...

virtual void	draw (graphics_engine &g) const
	Function that catches draw event. More...

virtual bool	keyboard (int key, int action, int mods)
	Function that catches key down event. More...

virtual void	cursor (double x, double y, double z)
	Function that catches passive cursor event. More...

virtual void	mouse (double x, double y, double z, int button, int action, int mods)
	Function that catches mouse event. More...

virtual void	scroll (double xoffset, double yoffset)
	Function that catches scroll event. More...

virtual void	drag (double x, double y, double z, double u, double v, double w)
	Function that catches drag event. More...

Detailed Description

Interface for implementing drawable classes.

Member Function Documentation

◆ get_current_cursor()

virtual UI_interface::CURSOR_TYPE drawable::get_current_cursor ( ) const

inlineoverridevirtual

Get current cursor icon.

Returns: Current icon.

Reimplemented from UI_interface.

◆ handle_event()

virtual bool drawable::handle_event ( const event_structure & event )

inlineoverridevirtual

Handle an UI input event.

Parameters

[in] Event information.

Reimplemented from UI_interface.

◆ hide_logo()

virtual bool drawable::hide_logo ( ) const

inlinevirtual

Tell the host program if a SHKZ logo should be hidden.

Returns: If return true, SHKZ logo will not be displayed. If return false logo will stay appeared.

◆ recursive_initialize()

virtual void drawable::recursive_initialize ( const environment_map & environment )

inlineoverridevirtual

Recursively call configure.

Parameters

[in] config Configuration setting.

Reimplemented from recursive_configurable.

◆ setup_window()

virtual void drawable::setup_window	(	std::string &	name,
		int &	width,
		int &	height
	)		const

inlinevirtual

Set up an initial new window environment.

Parameters

[out]	name	Name of the window.
[out]	width	Width of the window.
[out]	height	Height of the window.

◆ should_quit()

virtual bool drawable::should_quit ( ) const

inlineoverridevirtual

Function to tell the host program that program should quit.

Returns: If return true, program will exit. false otherwise.

Reimplemented from runnable.

◆ should_screenshot()

virtual bool drawable::should_screenshot ( ) const

inlinevirtual

Function to tell the host program that screenshot should be taken.

Returns: If return true, the host program will take a screenshot and save to a file. false if not.

The documentation for this class was generated from the following file:

include/shiokaze/ui/drawable.h
